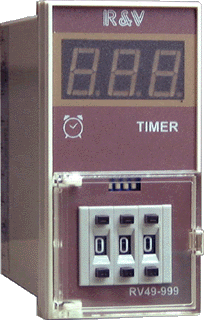

RV49-999
Display Type
Time Setting
Rated Power
Operating Voltage range
Power consumption
Accuracy of operating time
Reset Time
Number of output
Control output
Display mode
Multi range
Max. time setting, (resolution)
Mode
Range and mode setting
Mountng
External connections
0.56" 3 digits 7-seg L.E.D
3 digits pushwheel switches
115VAC or 230VAC, 50/60hz
±10% of the above rated power supply
3w
±0.05% FS max. at 5ºC-40ºC
Min. power-opening time: 0.15s
2 output. For RV49-999TI, 1 timed & 1 instant.
For RV49-999TT, both timed.
Relay output: SPDT, 5a at 250VAC, resistive load
Count up.
7 ranges
9.99s,(0.01s); 99.9s,(0.1s); 999s,(1s); 99.9mins,(0.1min); 999mins,(1min); 99.9hrs, (0.1hr)
999hrs,(1hr).
Dual mode. On-delay and Interval
Set by DIP switch

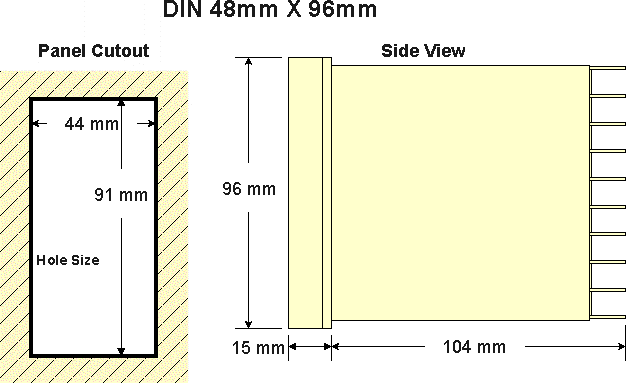

DIN 48mm X 96mm
Scew terminals
